Imagine矩阵设备,支持从16x16到288x288规模,支持冗余电源,冗余交叉点。广电级切换矩阵,可以配置各种控制面板,可单独订购,也可整体订购,满足不同的需求。
latinum VX 是一款超高密度、功能强大的 3G/HD/SD 切换矩阵,标配内置 Magellan™ 设置和配置实用程序。 当在混合环境中作为较大型路由系统的一部分予以实施时,Platinum VX 可在 Magellan™ SDN Orchestrator 的总体管理下无缝运行。Magellan™ SDN Orchestrator 提供 IP 无缝路径,同时保持标准路由和广播工作流程。 这一多用途视频路由器产品系列还完全支持各种获奖的 Magellan 路由器控制面板。
Platinum VX 视频矩阵用于在线、24/7小时,可靠性、配套广播电视设备,以及有线电视、电信和政府应用,很容易被纳入任何工作流程中,并提供无与伦比的多功能性和价值,有助于任何操作作业更为智能、更为高效。
四种不同的规格 - 支持多种矩阵要求(从 16x16 到 288x288)
内置 Magellan 控件 - 无需对系统设置和配置进行外部控制,简化并加快进程
光纤和电力连接口 - 使用 SFP 和 HD-BNC 模块,实现完整配置的灵活性
经业界验证 - 优化广泛部署的先进 Platinum 矩阵技术,提供高品质和高可靠性
无与伦比的高密度 - 提供每机架单位密度最高的 SDI 视频矩阵系统
支持静净切换功能
面向未来的灵活性 - 随着路由需求变化,现场升级 4RU和 8RU 机架产品
INPUT | |
Input Connector | 75 ohms HD-BNC |
Impedance | 75 ohms ( HD-BNC) |
Signal Type | SMPTE 424M, SMPTE 292M, SMPTE 259M SMPTE 344M, DVB-ASI |
Return Loss ( HD-BNC) | >15 dB, up to 1.485 GHz >10 dB, 1.485 to 2.97 GHz |
Equalization ( HD-BNC) | Automatic 550 m Belden 1694A for 270 Mb/s data rate 250 m Belden 1694A for 1.485 Gb/s data rate 150 m Belden 1694A for 2.97 Gb/s data rate |
OUTPUT | |
Output Connector | 75 ohms HD-BNC |
Impedance | 75 ohms ( HD-BNC) |
Signal Type | SMPTE 424M, SMPTE 292M, SMPTE 259M SMPTE 344M, DVB-ASI |
Return Loss (BNC, HD-BNC) | >15 dB, up to 1.485 GHz >10 dB, 1.485 to 2.97 GHz |
Amplitude | 800 mV ± 10% |
Overshoot | <10% |
DC Offset | 0V ± 0.5V |
Rise Time | 270 Mb/s: 400-800 pS 1.485 Gb/s: <135 pS 2.97 Gb/s: <135 pS |
Fall Time | 270 Mb/s: 400-800 pS 1.485 Gb/s: <135 pS 2.97 Gb/s: <135 pS |
Jitter | 270 Mb/s, 1.485 Gb/s: <0.2UI reclocked 2.97Gb/s: <0.3UI reclocked |
1 RU | 2 RU | 4 RU | 8 RU | |

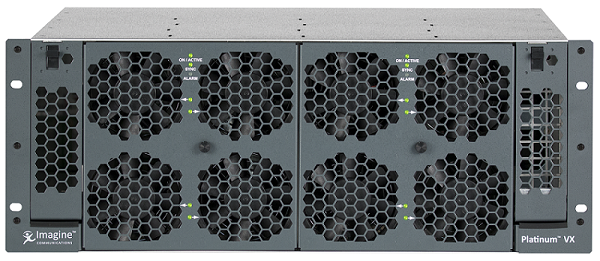

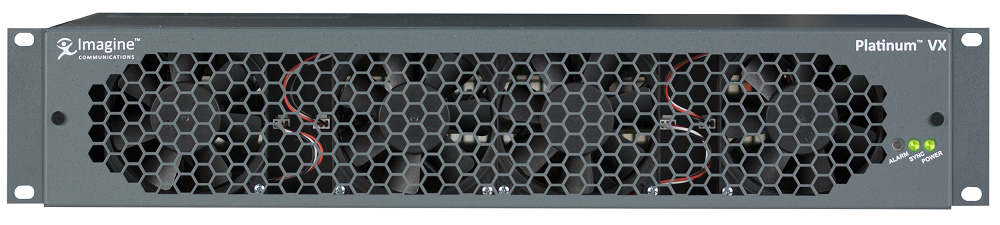

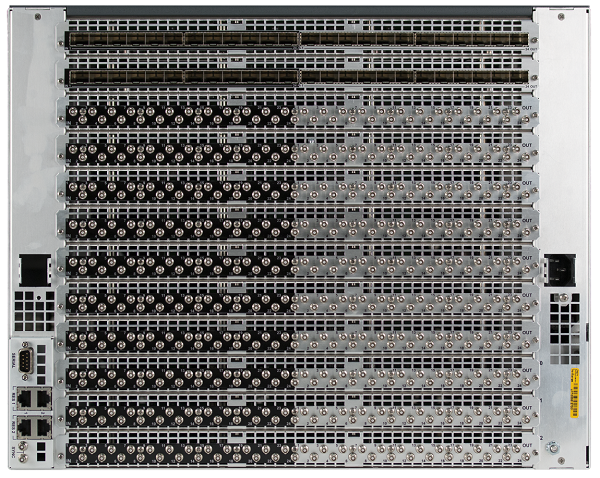

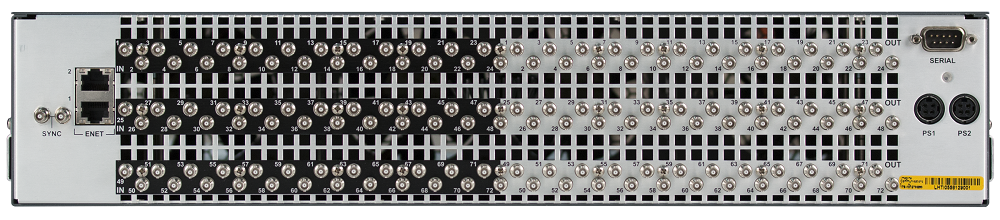

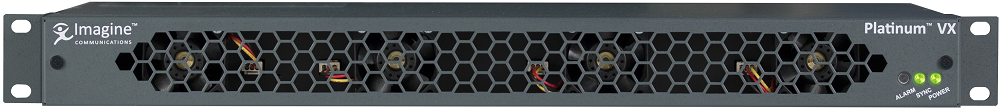

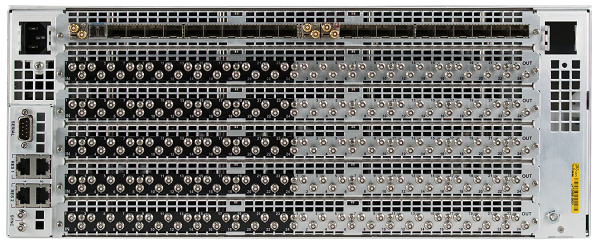

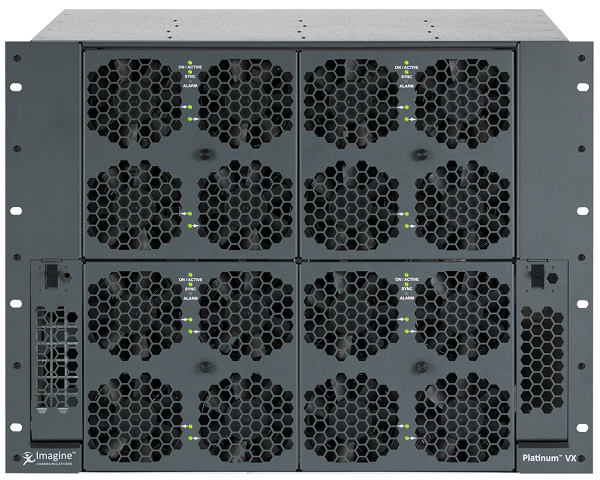

Dimensions (H x W x D) | 1.75 x 17.5 x 10.75 in. | 3.5 x 17.5 x 10.75 in. | 7.0 x 17.5 x 18.5 in | 14 x 17.5 x 18.5 in. |
Weight (approx, fully loaded) | 2.5 kg | 5 kg | 7 kg | 15 kg |
Matrix Size | 16x16 + 16x16SFP | 48x48 or 72x72 | 144x144 | 288x288 |
MATRIX MODULE CAPACITY | ||||
Back Modules | - | - | 6 | 12 |
Resource/Crosspoint Modules | - | - | 2 | 2 |
STANDARD EQUIPMENT | ||||
Power Supplies | 2 | 2 | 2 | 2 |
Fan Module | - | - | 2 | 4 |
Resource/Crosspoint Module | - | - | 1 | 1 |
UPGRADE OPTIONS | ||||
Redundant Resource/Crosspoint Module | No | No | Yes | Yes |
Ordering Information
PV-16X16-FR-1 | Platinum VX 1RU 16X16 Video Only Router with Additional 16X16 SFP Option |
PV-48X48-FR-2 | Platinum VX 2RU 48X48 Video Only Router |
PV-72X72-FR-2 | Platinum VX 2RU 72X72 Video Only Router |
PV-FR-4 | Platinum VX 4RU Up to 144X144 Modular Video Only Router (includes one video crosspoint and control card module) |
PV-FR-8 | Platinum VX 8RU Up to 288X288 Modular Video Only Router (includes one video crosspoint and control card module) |
PV-PS | Platinum VX Redundant AC Power Supply |
PV-144X144-3G4 | Platinum VX SD/HD/3G 144X144 Video Crosspoint and Control Card |
PV-288X288-3G8 | Platinum VX SD/HD/3G 288X288 Video Crosspoint and Control Card |
PV-24C-IOG | Platinum VX SD/HD/3G Modular 24 input and 24 output Coax Video I/O Module |
PV-24O-IOG | Platinum VX SD/HD/3G Modular 24 input and 24 output SFP Cage Video I/O Module |
OP+SFP+2ORX+NR | SFP Series, Dual channel optical inputs of SD/HD/3G PIN Receiver (non-reclocking) |
OP+SFP+2OTX+13+NR | SFP Series, Dual channel optical outputs of SD/HD/3G 1310nm wavelength (non-reclocking) |
SFP+2ERX+NR | SFP Series, Dual-channel HD BNC inputs of SD/HD/3G (Non-reclocked output) |
SFP+2ETX+NR | SFP Series, Dual-channel HD BNC outputs of SD/HD/3G (Non-reclocked output) |
SFP+2E+DEC | SFP Series, Dual-channel HD BNC Analog To Digital Decoder Input Module |
SFP+2E+ENC | SFP Series, Dual-channel HD BNC Digital To Analog Encoder Output Module |
SFP+HDMI+IN | SFP Series, HDMI Input Module |
SFP+HDMI+OUT | SFP Series, HDMI Output Module |
