Component, S-Video andComposite (CVBS) Video
Balanced and Un-BalancedAudio

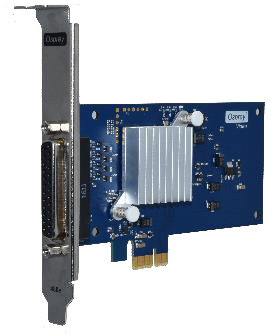

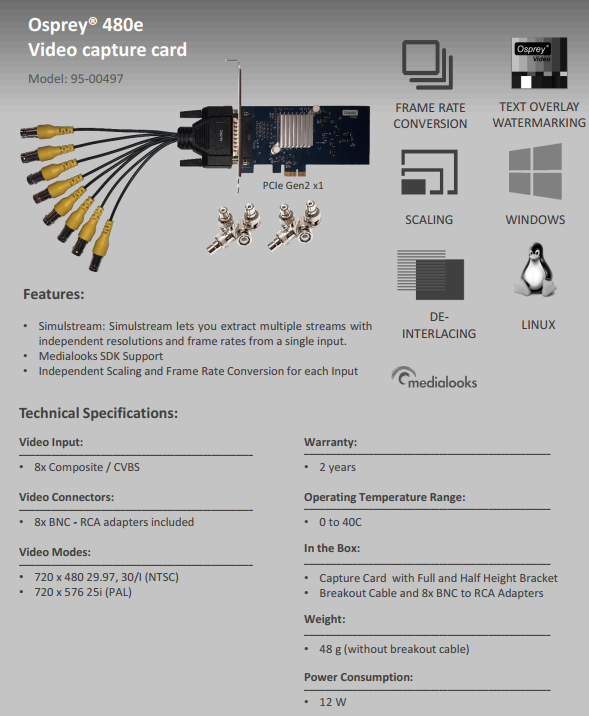

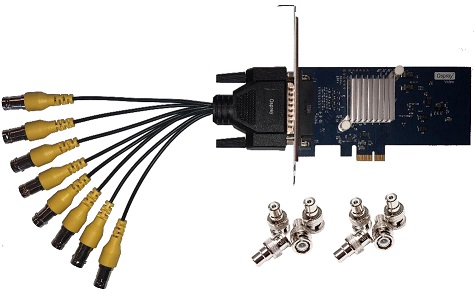

Osprey 480e–8 Channels
•Eight Channel Composite Video
•Simulstream Enabled
•Medialooks Support

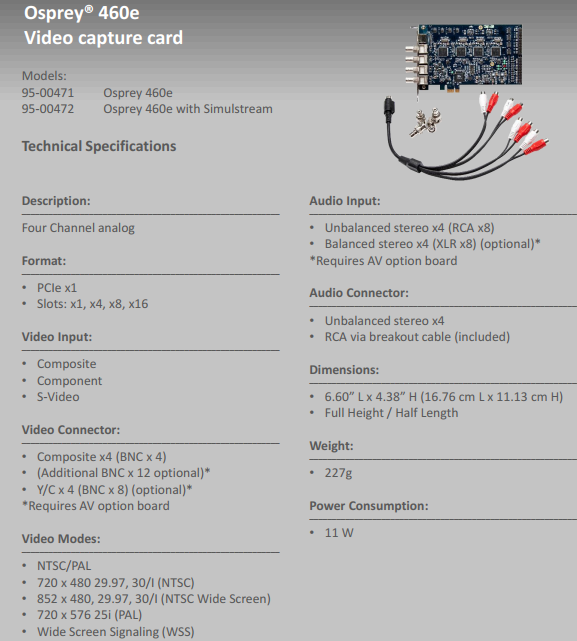

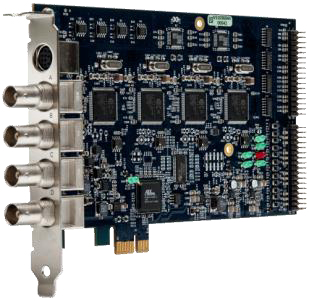

Osprey 460e–4 Channels
•Four Channel Composite Video
•Four Stereo Channels Un-Balanced Audio
•Component Videowith AV Option
•Balanced Audiowith AV Option

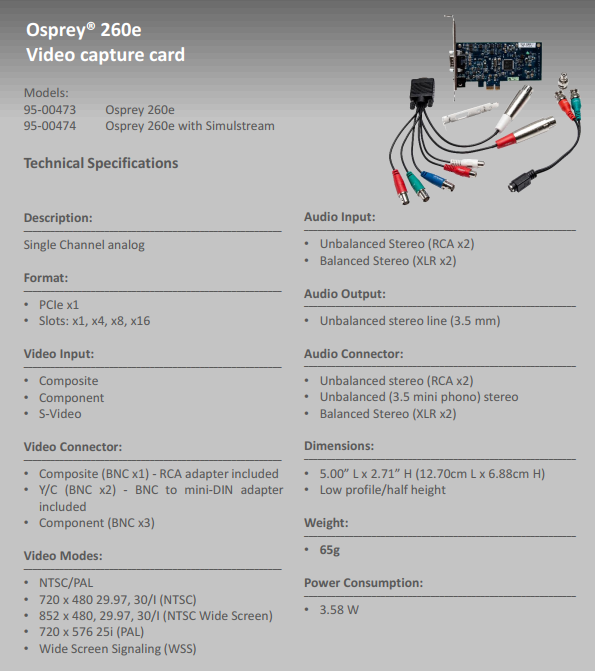

Osprey 260e–1 Channel
•Composite,S-Videoor Component Video
•Balanced or Un-Balanced Stereo Audio

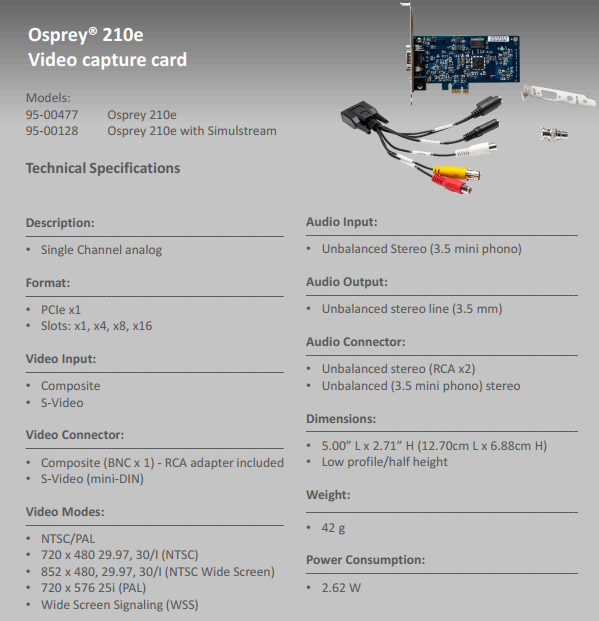

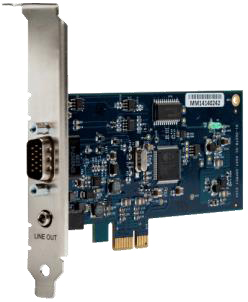

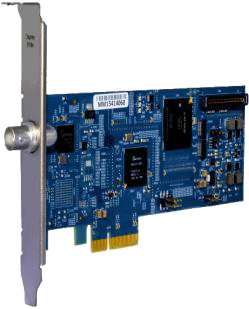

Osprey 210e–1 Channel
•CompositeorS-Video
•Un-Balanced Stereo Audio

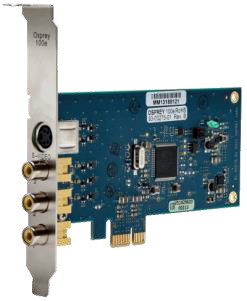

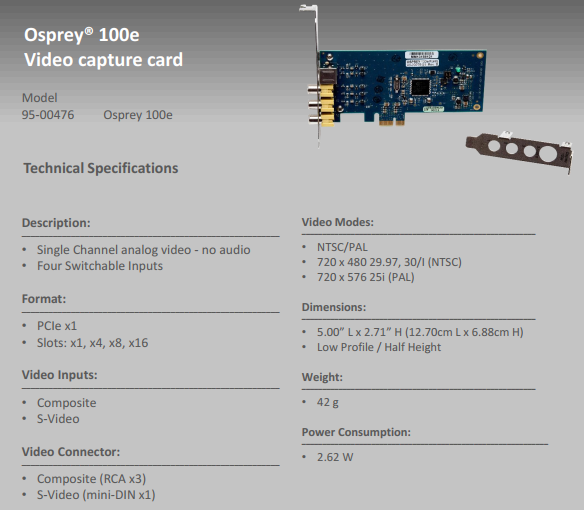

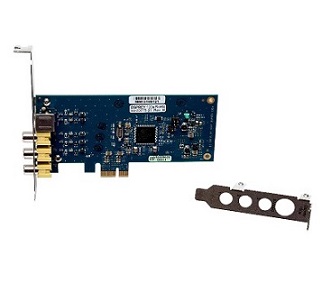

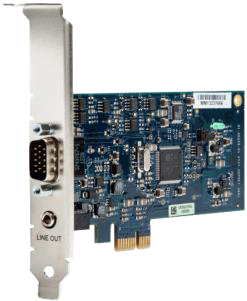

Osprey 100e–1 Channel
•3x Composite and 1 x S-Video(switchable)
The Analog PCIe Series of Capture Cards offer a wide range of input selections.The series ranges from the Osprey 100e, a single channel,four switchable input card,to the 460e which is capable of 16 switchable inputs.
Ideal for mission critical video capture,deploy two or more cards in a single workstation or server chassis for maximum input density.Driver based pre-processing features include closed-caption extraction and rendering, logo and bitmap overlay,scaling,cropping,de-interlacing and inverse telecine.
The quality,reliability and flexibility makes this series perfect for applications in Broadcast, Education, Enterprise, Government,Medical,Military,sports and House of Worship.
SimulStream®
210e, 260e and 460e offer optional SimulStream® which allows each input to produce multiple parallel output streams with independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.
Common Technical Specifications
Operating Temp Range
•0 to 40C
Non-Operating Temp Range
•-40 to +75C
Relative Humidity Operating
•Between 5% and 80%(noncondensing)
Relative Humidity Non-Operating
•95% RH(non-condensing);gradient 30% per hour
Available Drivers
•Microsoft Windows
•Linux(260e,460e,480e only)
•For more information on the latest OS
compatibility please visit:
www.ospreyvideo.com
Operating Altitude Range
•0 to 3,048 meters(10,000 feet)
Non-Operating Altitude Range
•0 to 15,240 meters(50,000 feet)
System Recommendations
•High quality video capture requires a PCIe bus with direct access to the CPU
Warranty
•2 Years
Compliance
•CE, FCC, ROHS, WEEE
Inthebox
•Capture Card
•All applicable cables
•Low-Profile Bracket
