3G SDI, HD-SDI, SD-SDI,HDMI, MFI, ASI

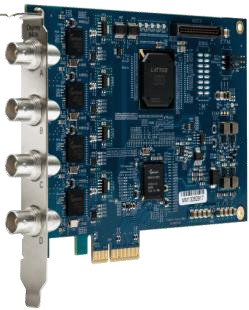

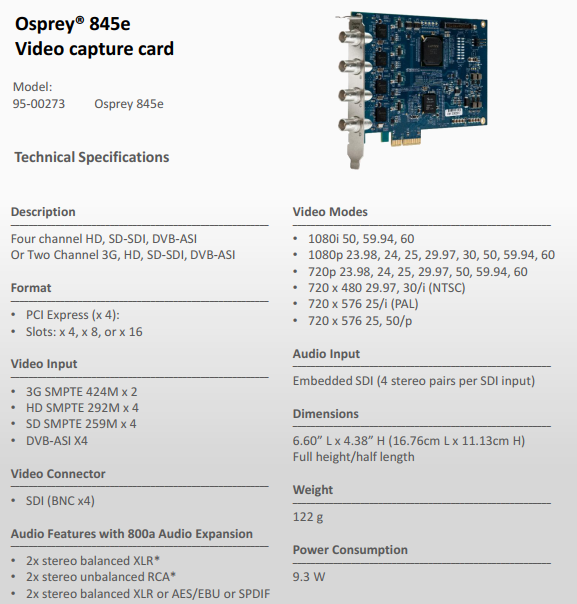

Osprey 845e–4 Channels
•3G SDI(424M)(limited to 2 channels)
•HD SDI(292M)
•SD SDI(259M)
•DVB-ASI MPTS/SPTS(Windows only)

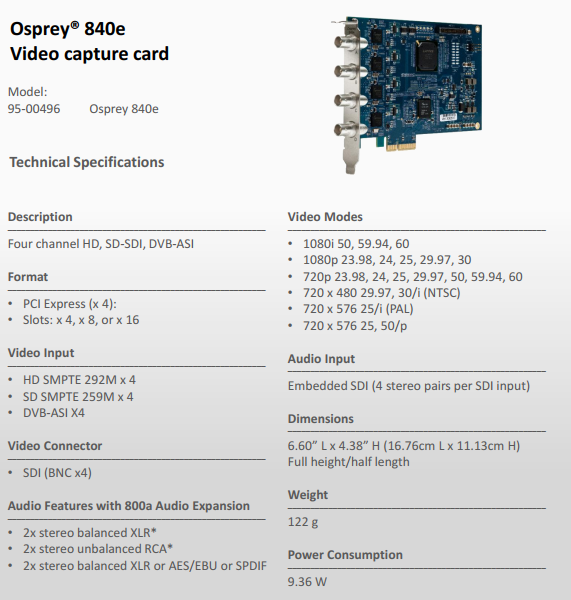

Osprey 840e–4 Channels
•HD SDI(292M)
•SD SDI(259M)
•DVB-ASI MPTS/SPTS(Windows only)
Common Technical Specifications

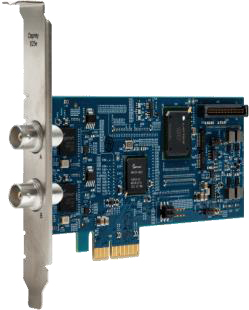

Osprey 825e–2 Channels
•3G SDI(424M)
•HD SDI(292M)
•SD SDI(259M)
•DVB-ASI MPTS/SPTS(Windows only)

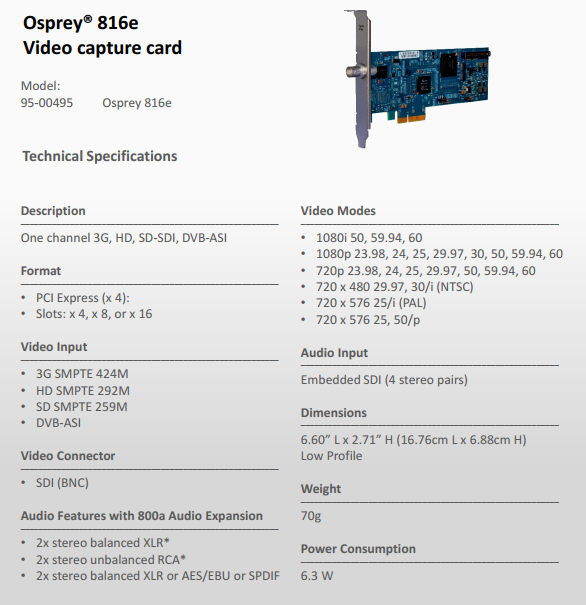

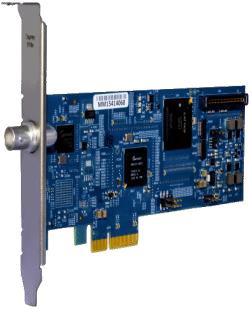

Osprey 816e–1 Channel
•3G SDI(424M)
•HD SDI(292M)
•SD SDI(259M)
•DVB-ASI MPTS/SPTS(Windows only)

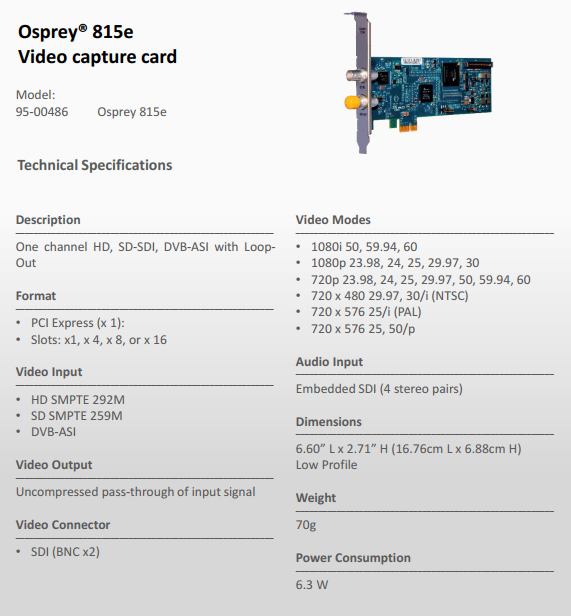

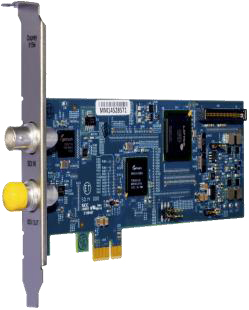

Osprey 815e–1 Channel
•HD SDI(292M)
•SD SDI(259M)
•DVB-ASI MPTS/SPTS(Windows only)
The SDI PCIeSeriesof Capture Cards offer a wide range of input selections,including single,dualand quad SDI.
SimulStream® a standard feature on all SDI models,is an Osprey feature which allows each input to produce multiple parallel output streams with completely independent settings for color space,cropping,scaling,closed caption and overlays facilitating simultaneous delivery to multiple applications.
Ideal for mission critical video capture.Deploy two or more cards in a single workstation or server chassis for maximum input density.Driver based pre-processing features include VBI/VANC closed-caption extraction/on-screen rendering,logo/bitmap overlay,scaling,cropping,de-interlacing,inverse telecine,ProcAmp control,Vector Scope and LumiScope
The quality,reliability and flexibility makes this series perfect for applications in Broadcast ,Education, Enterprise, Government,Medical, Military,Sports and House of Worship.
Addition Audio Options are available with the 800a Audio Expansion Card.
Common Technical Specifications
Operating Temp Range
•0 to 40C
Non-OperatingTemp Range
•-40 to +75C
Rel Humidity Operating
•Between 5% and 80%(noncondensing)
Rel Humidity Non-Operating
•95% RH(non-condensing);gradient 30% per hour
AvailableDrivers
•Microsoft Windows
•Linux
•Formore information on the latest OS
compatibility please visit:
www.ospreyvideo.com
Operating Altitude Range
•0 to 3, 048 meters(10,000 feet)
Non-Operating Altitude Range
•0 to 15,240 meters(50,000 feet)
System Recommendations
•High quality video capture requires a PCIe
•bus with direct access to the CPU
Warranty
•2 Years
Compliance
•CE ,FCC, ROHS, WEEE
Inthebox
•Capture Card
•All applicable cables, adapters & brackets
