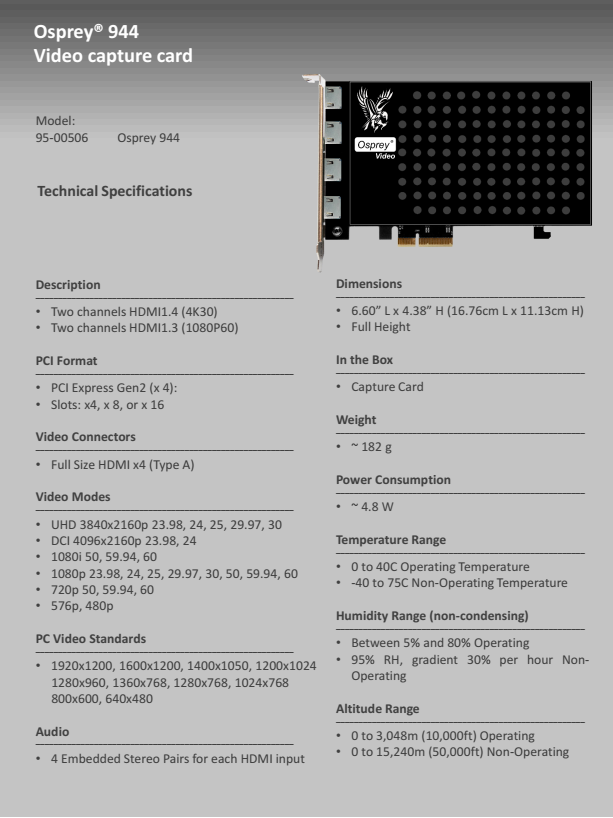

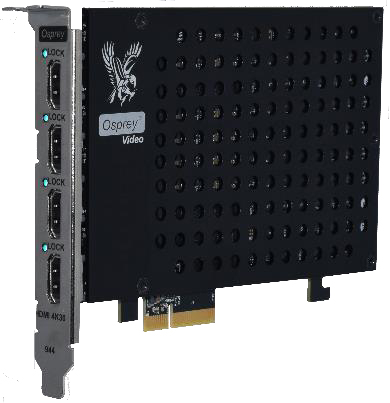

Osprey 944–4 Channels HDMI PCIe

•2x HDMI 1.4(4K30) plus 2x HDMI 1.3(1080p60)

•8 Embedded Audio Channels per Input

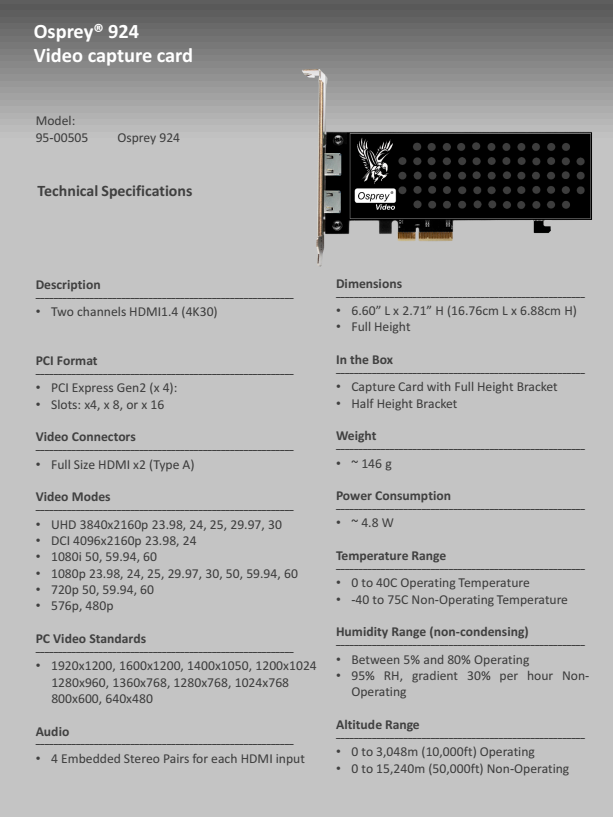

Osprey 924–2 Channels HDMI PCIe

•2x HDMI 1.4(4K30)

•8 Embedded Audio Channels per Input

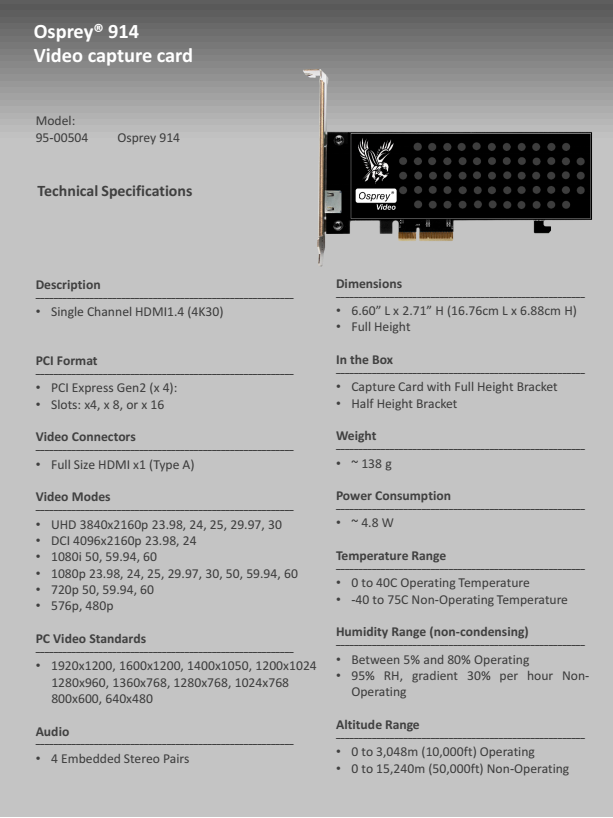

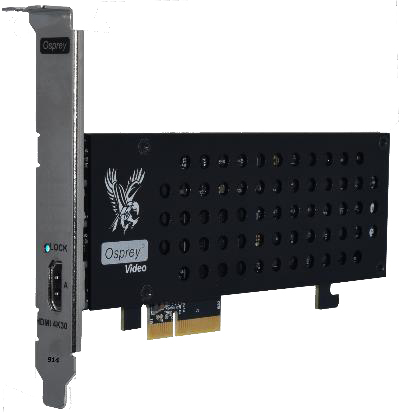

Osprey 914–1 Channel HDMI PCIe

•HDMI 1.4(4K30)

•8 Embedded Audio Channels per Input

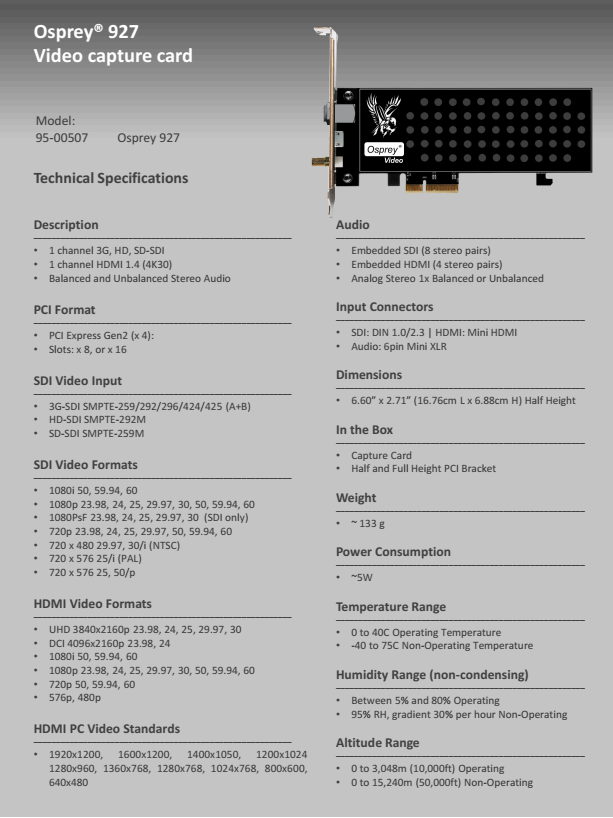

Osprey 927–2 Channels: 3G-SDI | HDMI1.4

•16 Embedded SDI Audio Channels

•8 Embedded HDMI Audio Channels

•Balanced and Unbalanced Analog Audio

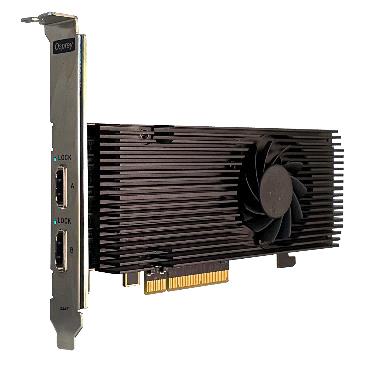

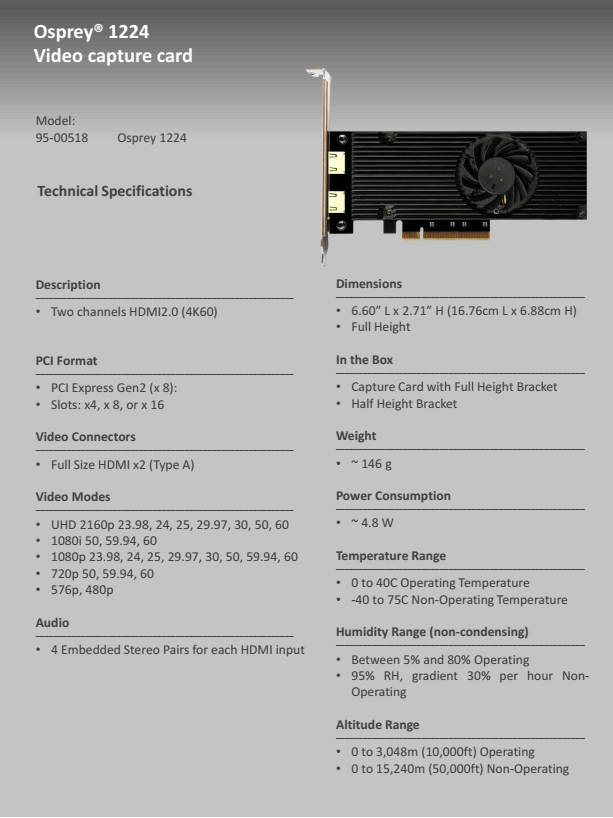

Osprey 1224–2 Channels HDMI PCIe

•2x HDMI 2.0(4K60)

•8 Embedded Audio Channels per Input

Osprey 1214–1 Channel HDMI PCIe

•HDMI 2.0(4K60)

•8 Embedded Audio Channels per Input

Raptor HDMI Series 12xx, 9xx Common Technical Specifications

Operating Temp Range

•0 to 40 C

•0 to 60 C for Rugged Version

Non-Operating Temp Range

•-40 to +75 C

Relative Humidity Operating

•Between 5% and 80%(noncondensing)

Relative Humidity Non-Operating

•95% RH(non-condensing);gradient 30% per hour

Available Drivers

•Microsoft Windows

•Linux

•Formore information on the latest OS

compatibility please visit:

www.ospreyvideo.com

Operating Altitude Range

•0 to 3,048 meters(10,000 feet)

Non-Operating Altitude Range

•0 to 15,240 meters(50,000 feet)

System Recommendations

•High quality video capture requires a PCIe bus with direct access to the CPU

Warranty

•2 Years

•3 Years for Rugged Version

Compliance

•CE,FCC,ROHS,WEEE

Inthebox

•Capture Card

•All applicable cables,adapters & brackets
